ANDANTEX PLX120-40-S2-P0 high precision helical gear series planetary gearbox in stacker cranes

Short Description:

Product name: Precision Disc Output Flange Reducer

Item No.: PLX120-40-S2-P0

Specification range: 120

ratio: 40

standard backlash: 5arcmin

Rated out put rorque: 350

Max.torque: 3X rated torque

Emergency braking torque: 3X rated torque

Max .radial force: 8200N

Torsional rigidity: 82N

Max. input speed: 4500-6000

Rated input speed: 3000

Noise level: <65dB

Mass moments of inertia: 0.47 kg.cm²

Srvice life: 20000 h

Efficicency: 94%

Protection class: IP 65

Mounting positon: ANY

Operating temperature: +90℃- -10℃

Motor dimensions: Shaft 22-bump size 110-PCD145

Weight: 9.5

Lubricaling method: synthetic grease

Send email to us 3D Drawing Download

Product Detail

Product Tags

Specification

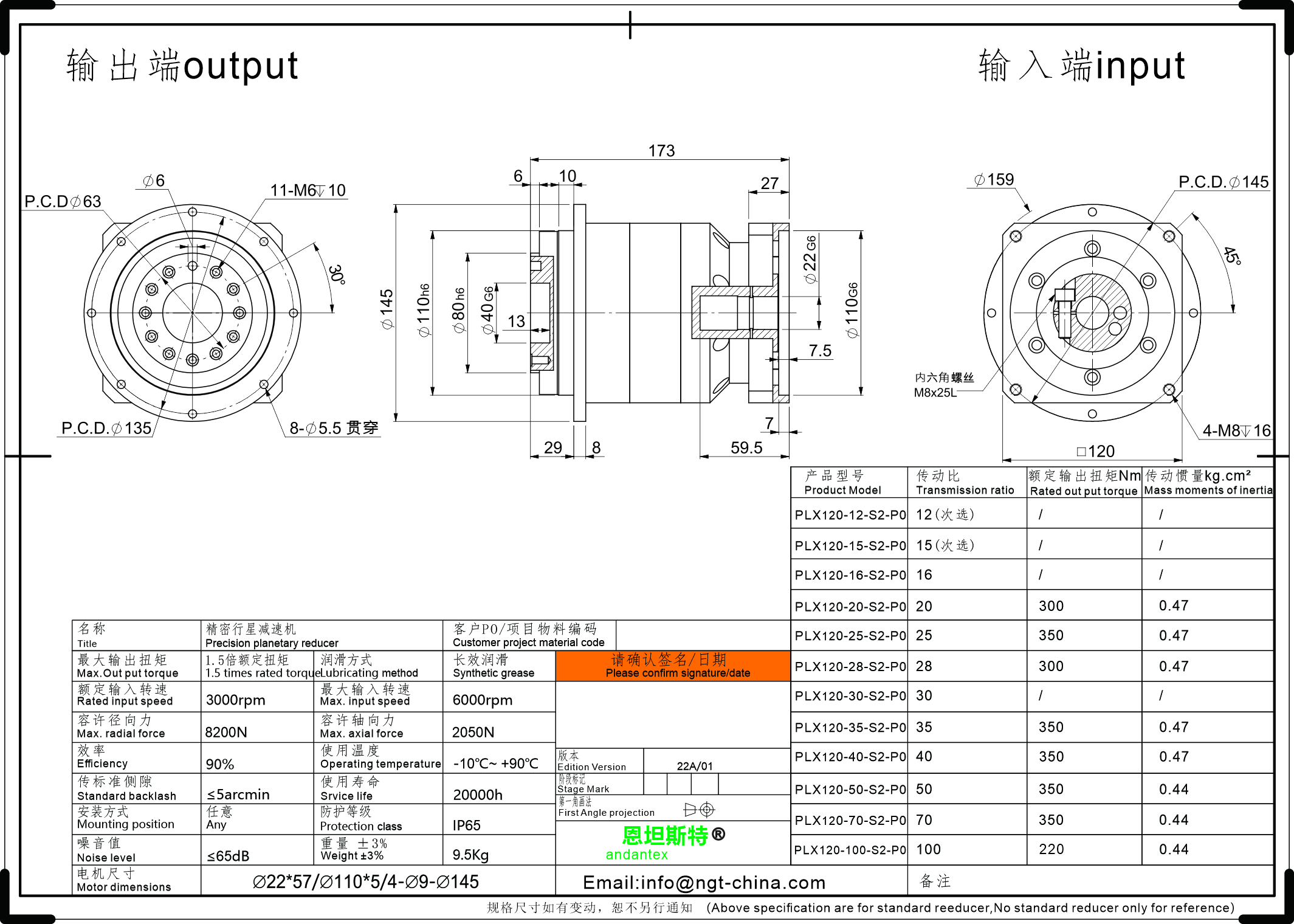

Precision Disc Output Flange ReducerPLX120-L2-22-110-145

Features

ANDANTEX PLX120-40-S2-P0 high precision helical gear series planetary gearbox in stacker cranes-01 (2)

1. for the round hair a corner type output, with economic and practical, cost-effective, short axial size, good steel, large load-bearing capacity.

2. High precision: flange output method can reduce transmission error and improve transmission precision.

3. For the round hair corner type output, with economic and practical, high cost performance

4. small size: flange output mode makes the reducer more compact and more adaptable. Good stability: flange output mode can reduce transmission noise and vibration and improve the stability of the reducer.

5. Beautiful appearance, easy installation, accurate positioning characteristics, suitable for AC servo motor, DC servo motor, stepper motor reducer transmission.

Applications

PLX120 series oblique tooth planetary reducer can be one of the core components of stacker crane application equipment, its role is to turn the high speed and low torsion of the motor into low speed and high torsion output, thus driving the stacker crane operation. At the same time, the helical tooth planetary gearbox has good precision and stability, which can improve the operation efficiency and accuracy of the stacker crane and reduce the failure rate and maintenance cost of the machine. Therefore, PLX120 series oblique gear planetary reducer plays a vital role in the application of stacker crane.PLX120 series high precision unique flange output way planetary reducer has the characteristics of high precision, unique flange output way, high torque heavy load, low noise and wide application range.
